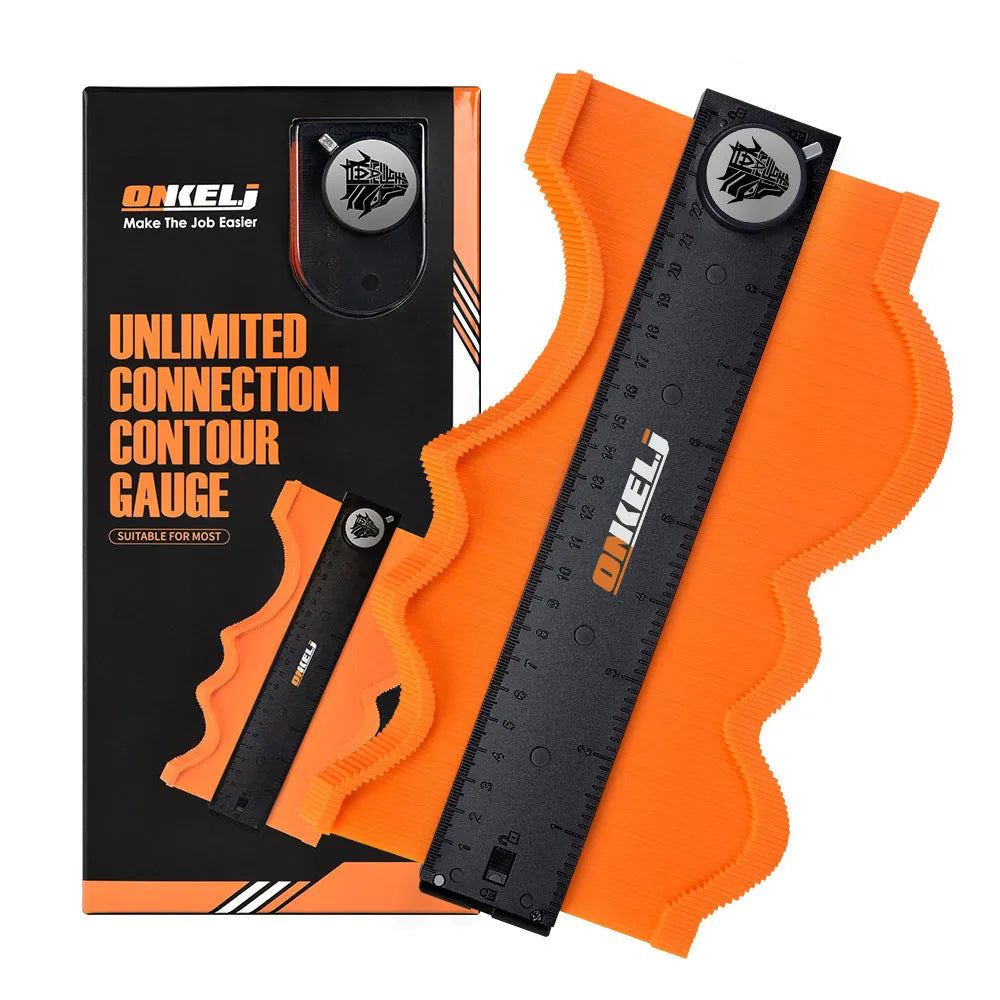

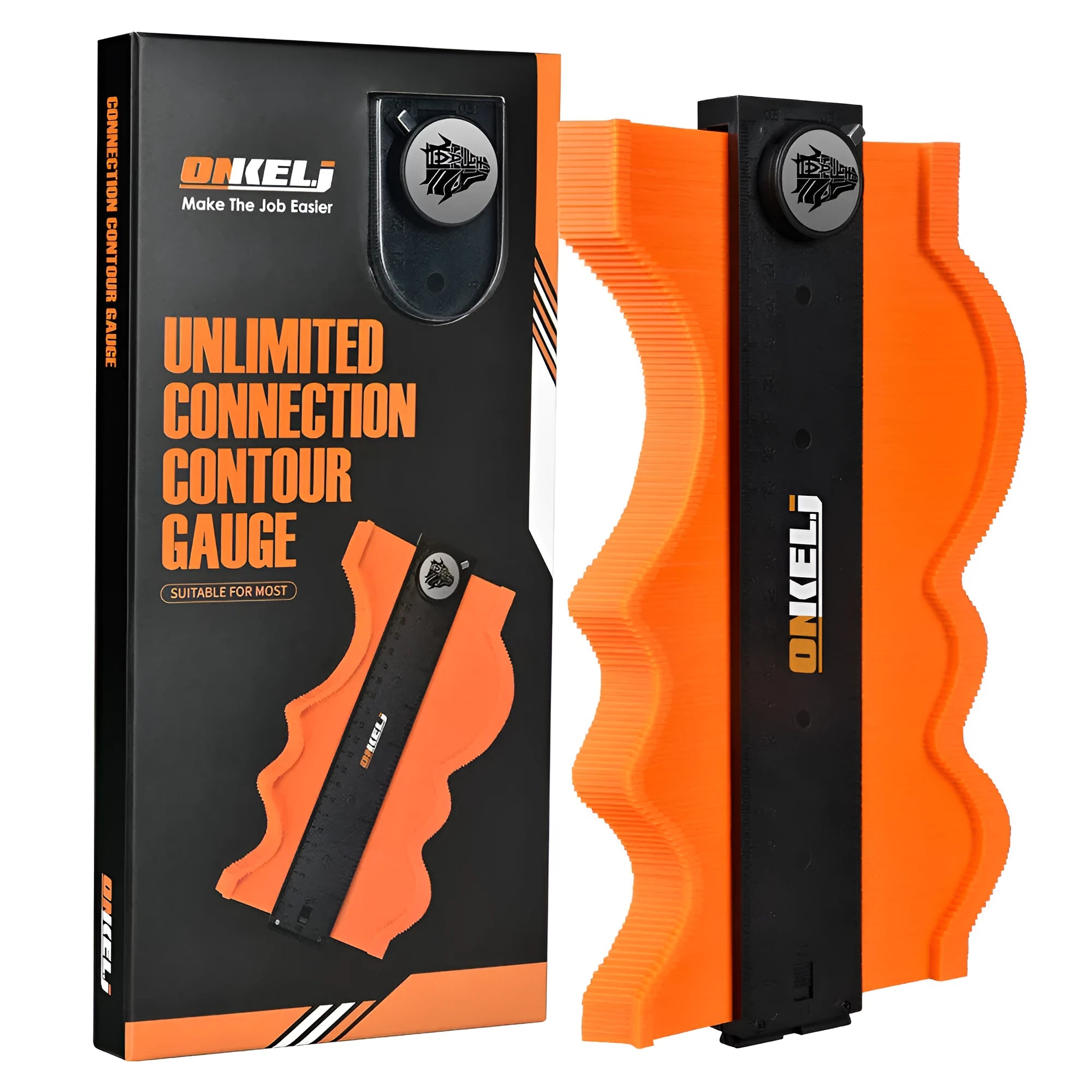

10-inch contour profile gauge with lock and unlimited stitching for accurate shape transfers

When working with tiles, wood, or other materials that require precise fitting against irregular shapes, a standard measuring tool often falls short. This 10-inch contour gauge solves that problem by capturing complex profiles that a tape measure or straight edge cannot handle. Its pins conform to any curve or angle, while the lock mechanism holds that exact shape securely until you transfer it to your cutting material. The unlimited stitching feature extends its usefulness further, allowing you to measure profiles longer than the tool's 10-inch span through sequential measurements. With construction combining ABS plastic and stainless steel, it offers both durability and consistent performance for workshop or jobsite applications.

Features and Construction

The gauge's design focuses on practical functionality for accurate shape replication. Each component serves a specific purpose in capturing, securing, and transferring irregular contours that challenge conventional measuring tools.

Material and Build

The combination of ABS plastic and stainless steel creates a tool that balances strength with practical usability. The ABS plastic body provides lightweight rigidity that resists impact if dropped in a workshop environment. Stainless steel components, likely used for the moving pins and internal mechanisms, ensure smooth operation without corrosion concerns, even in damp conditions. This material choice avoids the maintenance issues associated with tools using untreated steel components that might rust over time.

Size and Practical Fit

Measuring 265mm in length, 130mm in width, and 27mm in thickness, the gauge has a compact footprint that fits easily in a toolbox or on a workbench. The 10-inch measurement capacity covers most common profile transfer needs, while the unlimited stitching capability extends this range effectively. At 27mm thick, the tool provides sufficient depth for the pin mechanism to operate smoothly while remaining slim enough for precise placement against workpieces.

Uses and Placement

This contour gauge serves multiple applications where accurate shape matching is required. From professional trades to home DIY projects, its capability to capture irregular profiles addresses common fitting challenges across different materials and applications.

Event or Professional Use

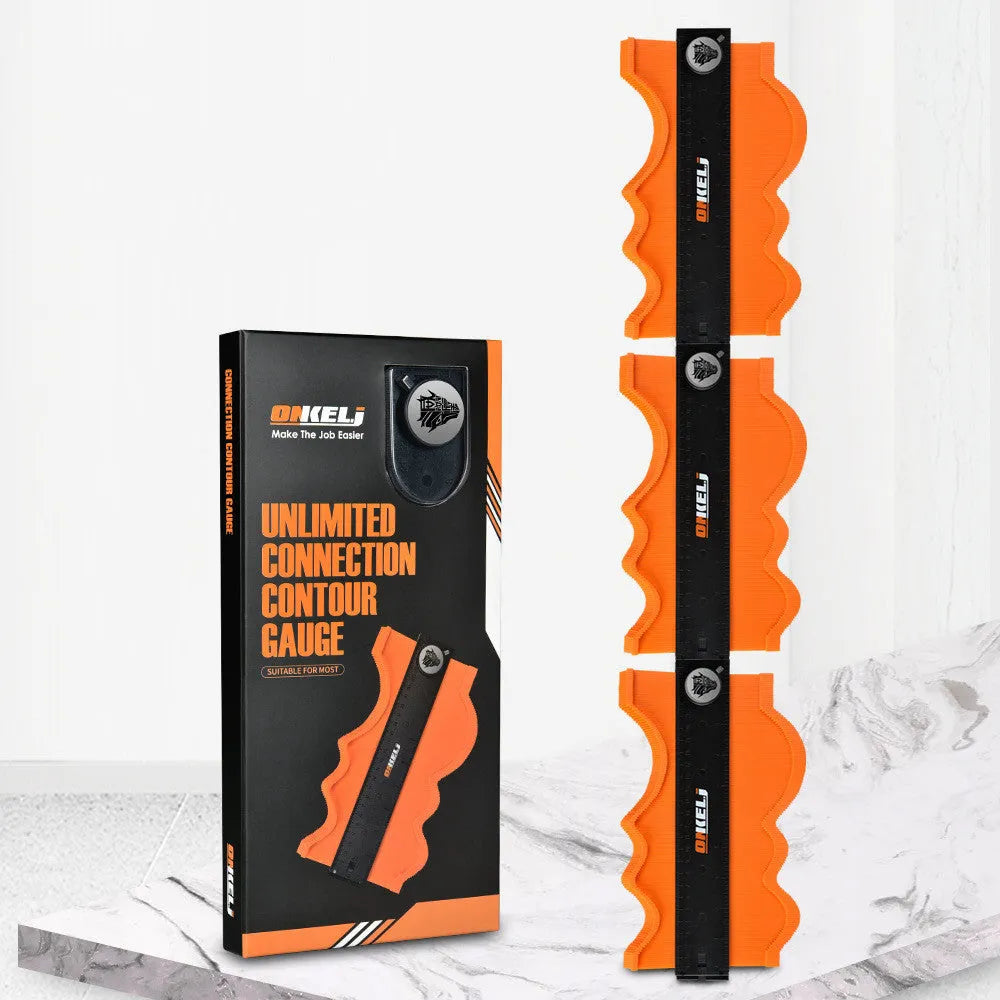

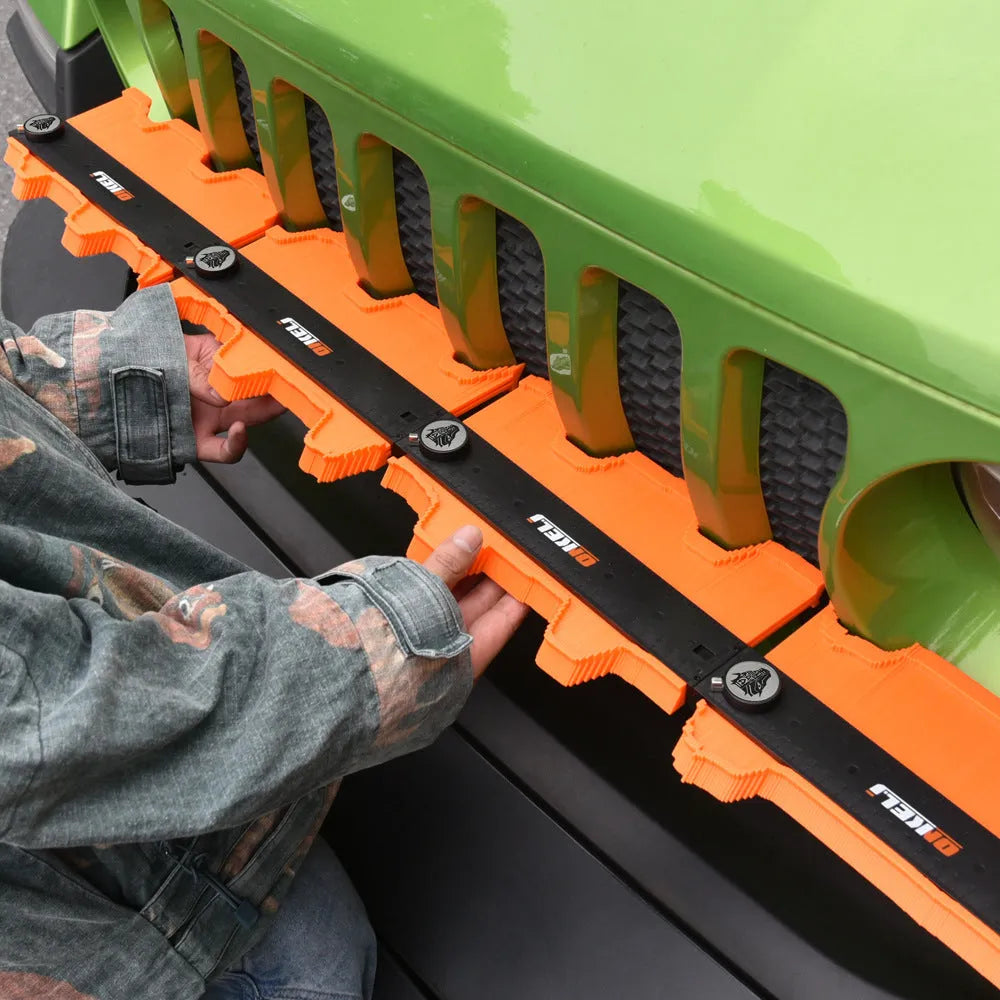

For tradespeople working with tiles, countertops, or flooring, the gauge accurately transfers wall contours, irregular corners, or pipe cutouts. The 1mm accuracy specification provides confidence when fitting expensive materials where wastage must be minimised. The lock mechanism ensures the captured shape remains exact during the transfer process, preventing measurement drift that could compromise a professional finish. The unlimited stitching feature proves particularly valuable when working with extended profiles that exceed the tool's 10-inch span.

Everyday Home Use

Home improvement projects often involve fitting materials around existing architectural features. When installing skirting boards against uneven walls, cutting laminate flooring around door frames, or creating custom shelving, this gauge captures the necessary profiles accurately. The straightforward operation—simply pressing the pins against the shape and locking them in place—makes it accessible for DIY enthusiasts without specialised measuring experience. Its compact size ensures it stores easily between projects.

Benefits and Buying Value

The practical advantages of this contour gauge stem from its specific design features rather than generic claims. Each functional element contributes to solving measurable problems in shape transfer tasks, providing tangible benefits for users across different skill levels.

Reuse and Low Maintenance

Constructed from ABS plastic and stainless steel, the gauge requires minimal maintenance beyond occasional cleaning. Unlike tools with complex electronic components, its mechanical design ensures long-term usability without battery replacements or calibration. The materials resist common workshop hazards like moisture, dust, and incidental impacts. This durability means the tool can serve through multiple projects without performance degradation, making it a practical addition to any toolkit.

Why Choose This Product

The combination of 10-inch capacity, unlimited stitching capability, and lock mechanism addresses the limitations of basic contour gauges. While simpler versions exist, this model provides the specific features needed for accurate, repeatable profile transfers. The 1mm accuracy specification offers measurable confidence in results, particularly important when working with materials where precise fits are essential. For anyone regularly facing the challenge of transferring irregular shapes, these features provide tangible improvements over more basic alternatives.
